Developer Guide

Acknowledgements

This guide was done referencing addressbook-level3.

1. Overview

MeetingJio is a program for finding potential time slots for team meetings based on everyone’s availability.

2. Design

2.1 UI Component

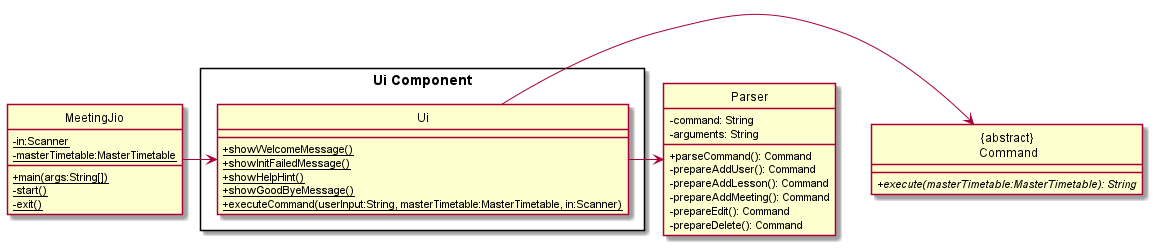

The Ui class is initialised by MeetingJio, and it handles:

• Reading user input
• Printing output

The Parser and Command classes will also be called by Ui class in the process of handling the user’s input.

2.2 Commands Component

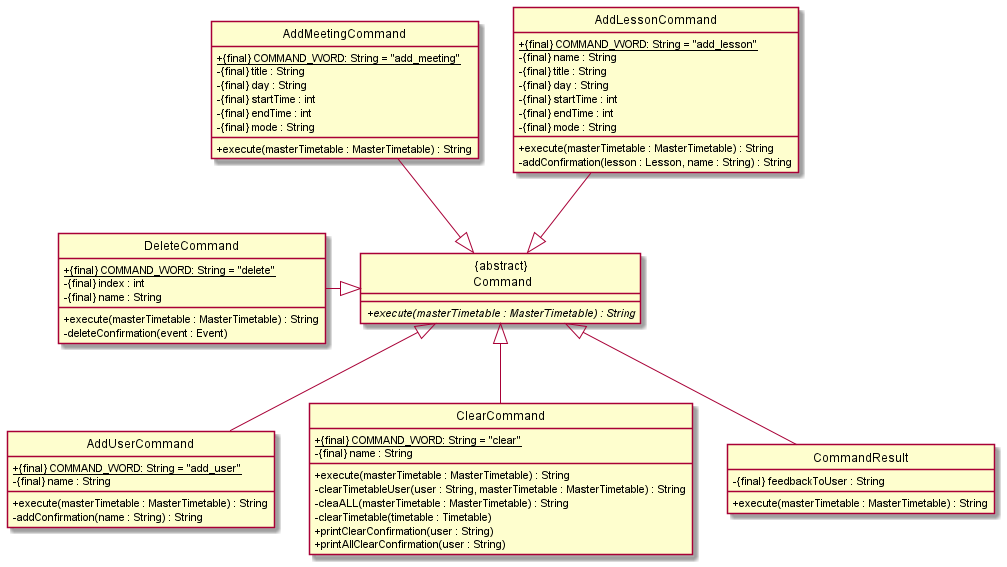

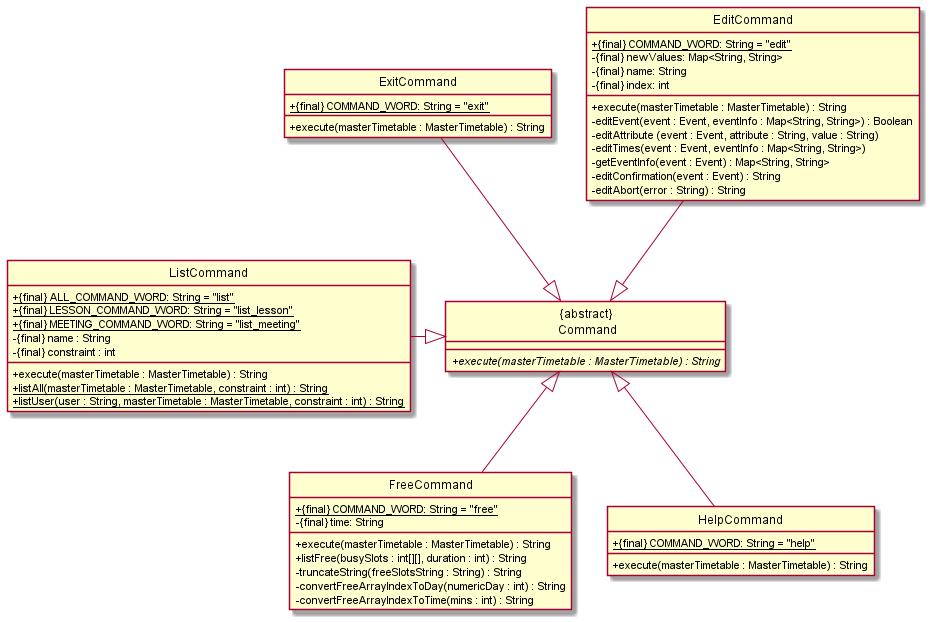

The above partial class diagrams illustrate the classes inside the commands component that correspond to specific functionalities.

The commands component consists of a commands package. Inside the package are the following classes:

1. An abstract Command class which other individual command classes inherit from.
2. Individual Command classes which corresponding to a specific command based on the user’s input.
   • AddLessonCommand
   • AddMeetingCommand
   • AddUserCommand
   • ClearCommand
   • DeleteCommand
   • EditCommand
   • ExitCommand
   • FreeCommand
   • HelpCommand
   • ListCommand
3. Lastly, CommandResult class returns corresponding feedbacks to the user.

2.3 Parser Component

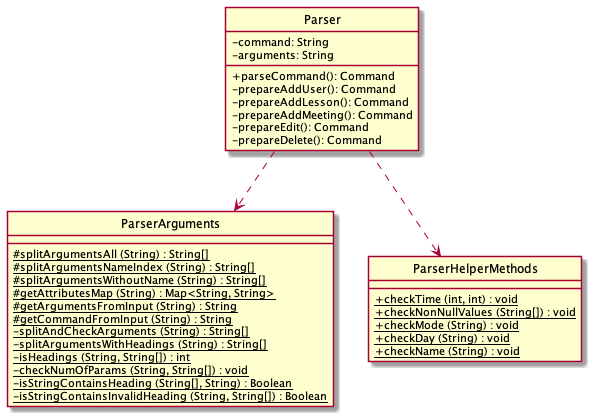

The above class diagram illustrates the classes within the parser package.

The parser package includes:

1. Parser
   • To parse the user input and call the respective functions or command objects based on the command word.
2. ParserArguments
   • To parse and split the arguments into array of parameters’ values.
3. ParserHelperMethods
   • Contain helper methods to check if the values of the parameters are valid.

2.4 Timetables Component

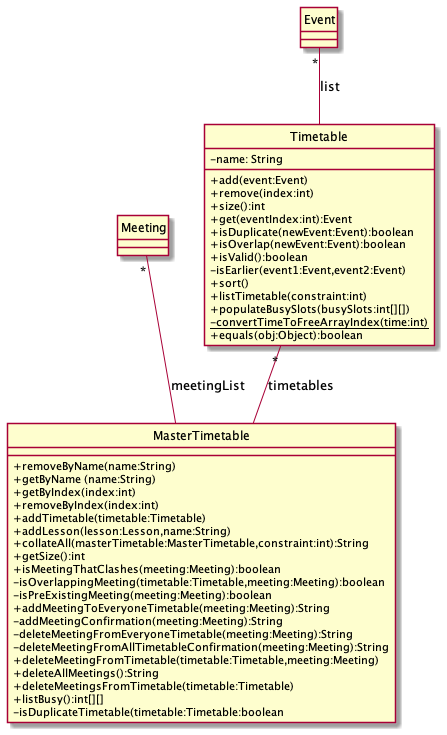

The above class diagram illustrates the classes within the timetables package. The timetables package includes

1. Timetable
   • To invoke operations involving a specific timetable object.
2. MasterTimetable
   • To invoke operations on the master list of all user’s timetable.

2.5 Event Component

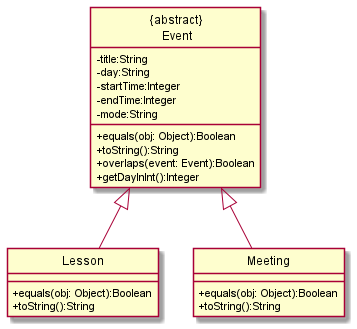

The above class diagram illustrates the classes within the events package.

The event package includes:

1. An abstract Event class that other event classes inherit from
2. Individual Event classes that inherits from the Event class
   • Lesson
   • Meeting

2.6 Storage Component

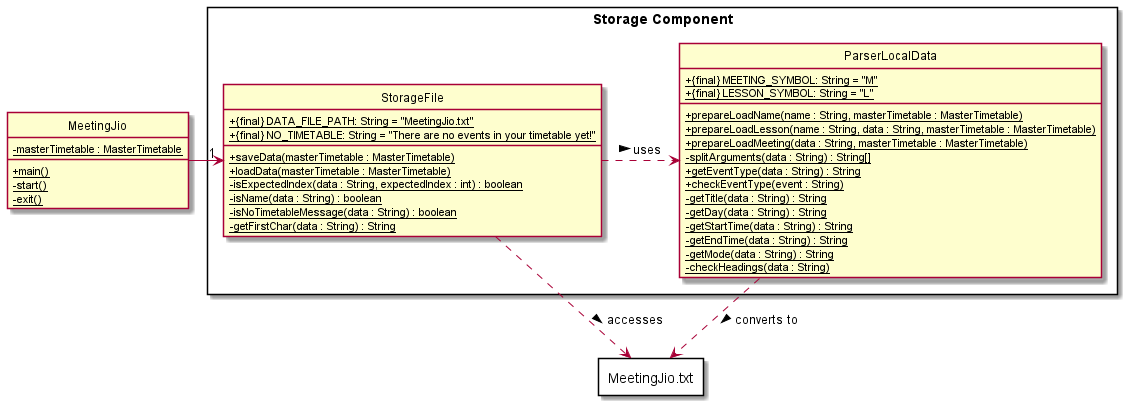

The storage component uses the StorageFile and ParserLocalData classes.

• StorageFile class consists of the two main functions, saveData and loadData.
• saveData writes all the elements in the timetable and masterTimetable to the MeetingJio.txt. If the file is not found, the file will be created.
• loadData reads all the data stored in the MeetingJio.txt and passes them to the corresponding function in the ParserLocalData class.
• ParserLocalData parsers all the data and stores them back into the corresponding list. In addition, it contains error exception handler to ensure that the data in the MeetingJio.txt is correctly formatted.

The directory and filename of the data file is defined within the StorageFile class
The default value is set to ‘MeetingJio.txt’

3. Implementation

This section describes some noteworthy details on how certain features are implemented.

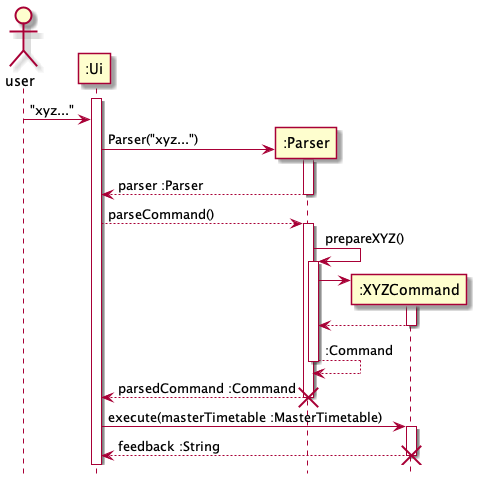

The following sequence diagram shows how the commands generally works. Note that certain commands may have slightly different implementation compared to the one below.

Given below is the steps on how the command operations generally works.

1. User inputs is passed to the UI.
2. Ui then provides user input to the Parser class which parses it and retrieves the command and parameters.
3. Ui subsequently executes the command on the MasterTimetable.
4. Eventually a feedback message will be shown to user upon successful or failed execution.

3.1 Add Feature

The add command is a command that allows user to

1. add new users to the master timetable.
2. add new events to the timetables.

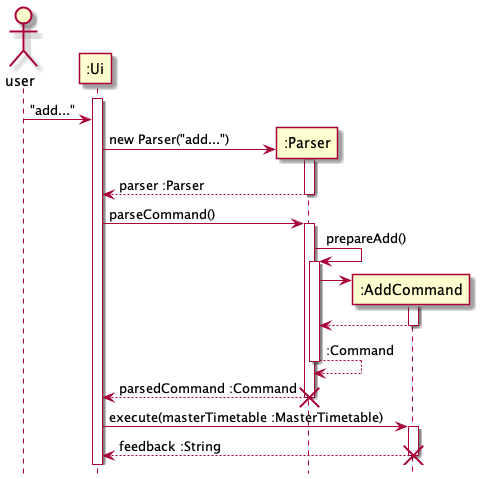

The following sequence diagram shows how the add operation generally works.

Note:

This is a condensed diagram. Several terms in the sequence diagram above have been substituted by a common term.

Common Term	User-specific term	Lesson-specific term	Meeting-specific term
add	"add_user ..."	"add_lesson ..."	"add_meeting ..."
AddCommand	AddUserCommand	AddLessonCommand	AddMeetingCommand

3.1.1 Add User Feature

add_user adds new user and his or her timetable into the master timetable.

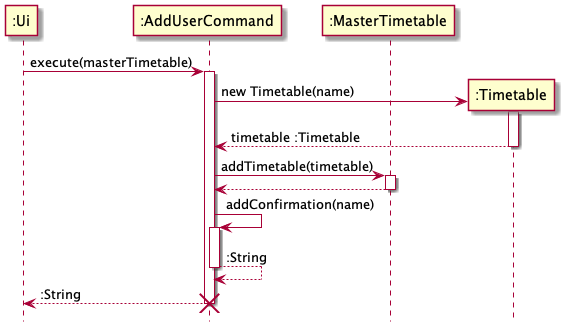

The following sequence diagram shows how the add_user command works:

Given below is the steps on how the add_user operation works.

1. User inputs add_user with username which is passed to the UI.
2. Ui then provides user input to the Parser class which parses it and retrieves the name.
3. Ui subsequently executes the command on the MasterTimetable.
4. The AddUserCommand will create a new Timetable and add it to the MasterTimetable.
5. Eventually a confirmation message will be shown to user upon successful addition.

3.1.2 Add Events Feature

add_lesson allows users to create a new lesson and add it to their own timetables.

add_meeting allows users to create a new meeting and add it to all the existing timetables.

Add Lesson

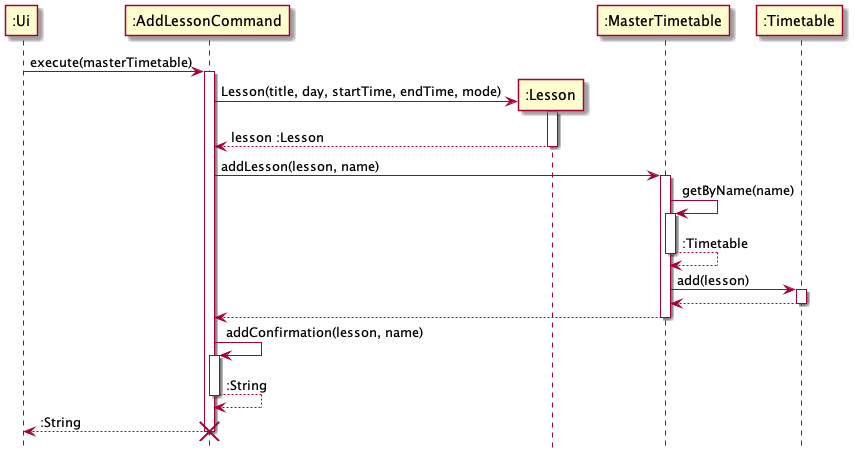

The following sequence diagram shows how the add_lesson operation works in detail.

Given below is the steps on how the add_lesson operation works.

1. User inputs add_lesson with appropriate parameters which is passed to the UI.
2. Ui then provides user input to the Parser class which parses it and retrieves the respective lesson description.
3. Ui subsequently executes the command on the MasterTimetable.
4. The AddLessonCommand will create a new Lesson and add it to the specified user’s timetable.
5. Eventually a confirmation message will be shown to user upon successful addition.

Add Meeting

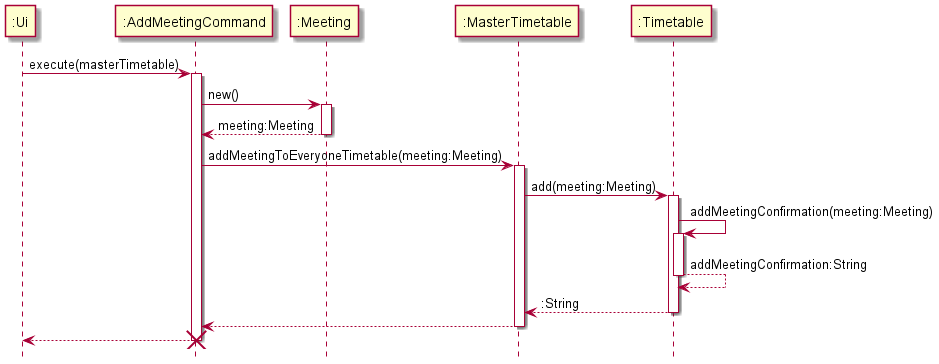

The following sequence diagram shows how the add_meeting operation works in detail.

The above diagram shows the sequence diagram of an addition of a meeting which is normally after a few users and some of their lessons have been added and the free command is executed to see the free slots.

1. User inputs add_meeting with appropriate parameters which is passed to the UI.
2. Ui then provides user input to the Parser class which parses it and retrieves the respective meeting command.
3. Ui subsequently executes the command on the masterTimetable for the whole application.
4. The AddMeetingCommand will create a new meeting object from Meeting and will add to every user’s timetable.
5. Subsequently, a addMeeting confirmation message will be shown to user upon successful addition.

3.2 Listing Events Feature

The list command is a command that the user can input in order to list out the events he has in his timetable.

Before the timetable is listed out, it will also be sorted according to day and time for easy reading.

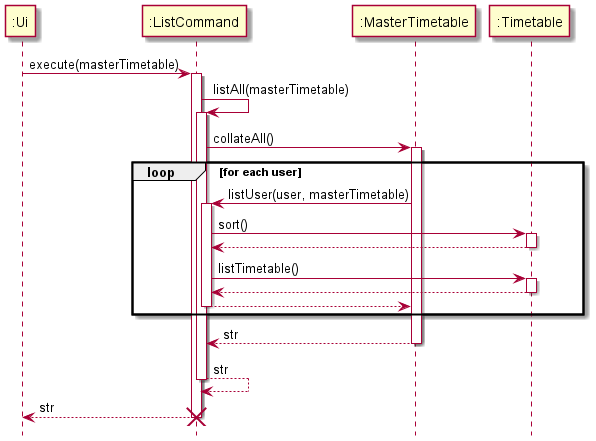

The following sequence diagram shows how the command list all is executed.

Given below is the steps of how the list command works:

1. If the given command is list NAME, the ListCommand calls the Timetable class to sort the user’s timetable and list all events out.
2. If the given command is list all, the ListCommand repeats Step 1 for all users.
3. If user inputs list_lesson... instead of list..., the ListCommand checks first if the event listed out in Step 1 is a Lesson. If not, it will not be printed out.
4. If user inputs list_meeting... instead of list..., the ListCommand checks first if the event listed out in Step 1 is a Meeting. If not, it will not be printed out.

3.3 Finding Common Free Timeslots Feature

The free command is a command that the user can input in order to find timeslots where all users are free.

For greater customisation, free DURATION displays all common timeslots which has a duration longer than or equal to what is specified.

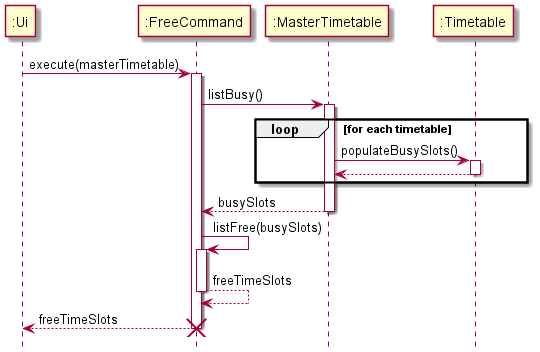

The following sequence diagram shows how the command free is executed.

Given below is the steps of how the free command works:

1. A 7 x 1440 array is created, with 7 rows for each day of the week, and 1440 columns for each minute from 0000-2359, where each element is initialised to 0 (FREE).
2. The listBusy() method in MasterTimetable is called. Within this method, each timetable in the MasterTimetable is called to populateBusySlots().
3. The populateBusySlots() method iterates through each event in the timetable, and sets the corresponding minute in the array to 1 (BUSY).
4. After iterating through every timetable in Master Timetable, the Free Command class obtains the updated array, and looks at the number of consecutive 0s to determine if the common free timeslot exceeds the minimum duration required.
5. The free timeslots will then be printed onto the screen.

3.4 Edit Events Feature

The edit command is a command that allows users to edit a specified event.

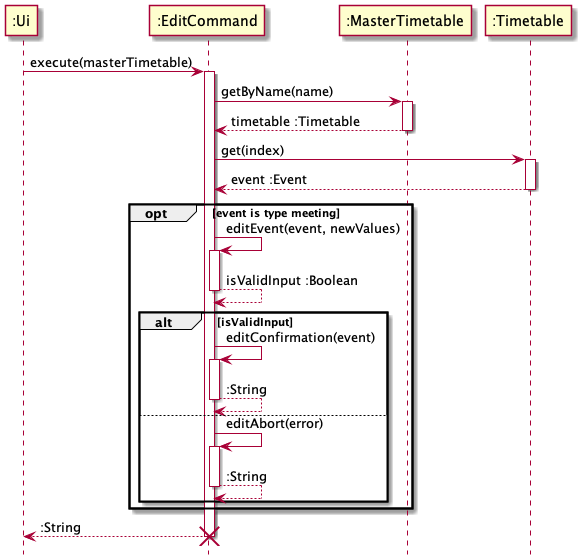

The following sequence diagram shows how the edit command works:

Given below is the steps on how the edit operation works.

1. User inputs edit with appropriate parameters which is passed to the UI.
2. Ui then provides user input to the Parser class which parses it and retrieves the respective parameters’ values.
3. Ui subsequently executes the command on the MasterTimetable.
4. The EditCommand will edit the specified event if the values provided in user input are valid.
5. Eventually a confirmation message will be shown to user upon successful edit.

3.5 Delete Events Feature

Deletes an event from the user’s specified timetable

Format: ` delete n/NAME i/INDEX`

Example of usage:

delete n/John i/1

If the event is a meeting, it will delete this meeting from all users. Else it will delete that specific lesson from the user’s timetable.

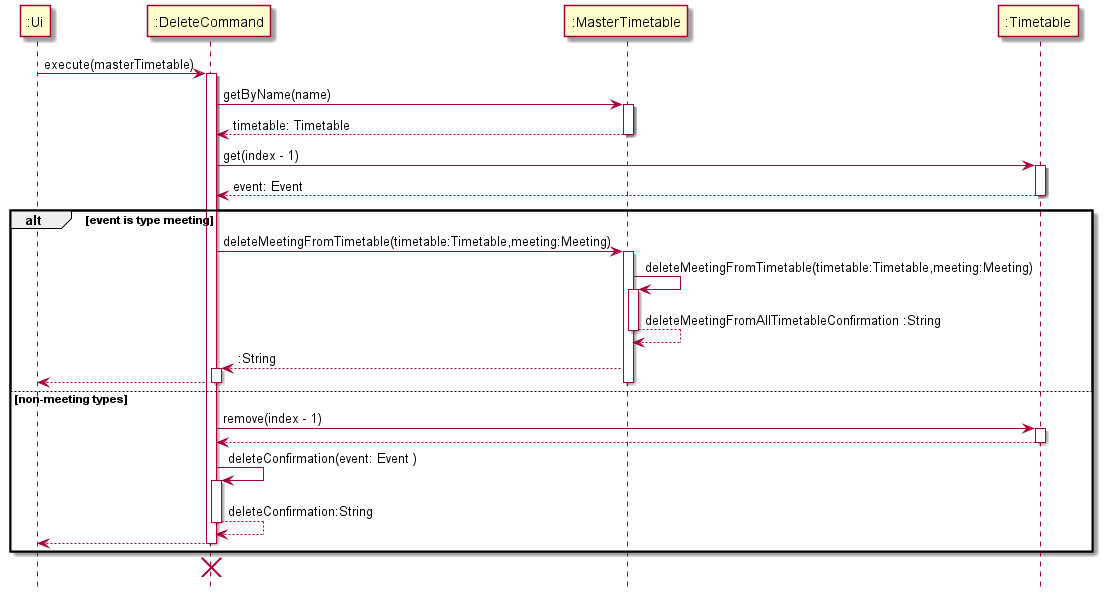

The following sequence diagram shows how the delete command works:

The above diagram shows the sequence diagram of a meeting deletion.

1. User inputs delete with appropriate parameters which is passed to the Ui.
2. Ui then provides user input to the Parser class which parses it and retrieves the respective delete command.
3. Ui subsequently executes the command on the masterTimetable for the whole application.
4. For a normal event (non-meeting) the DeleteCommand will get the user’s timetable from MasterTimetable and perform the deletion of that event.
5. If it is a meeting that the user is trying to delete, the DeleteCommand will find that meeting in everyone’s timetable and delete it.

3.6 Clear Events Feature

The clear command is a command that the user can clear a certain user’s timetable or everyone’s timetable.

clear NAME clears the timetable for the particular user.

clear all clears the timetable for all users.

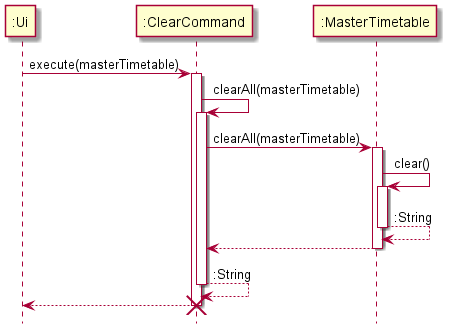

The above diagram shows the sequence diagram when a clear all command is executed.

1. User inputs clear with appropriate parameters which is passed to the UI.
2. Ui subsequently executes the command on the masterTimetable for the whole application, deleting all users and their timetable.

3.7 Data Saving Feature

The save mechanism is facilitated by StorageFile. It creates a text file in the local machine and writes all the elements in the MasterTimetable and Timetable to the text file in human-readable format.

Given below is the steps on how the save operation works.

1. When the user exits the application. The StorageFile.saveData will be initialized.
2. It will check for the existence of the data file. If the file is not found, it will create the file. Else do nothing.
3. After creating the file, collateAll method will be called to consolidate all elements in the MasterTimetable and Timetable list, and write them into the data file.
4. A message will be shown to the user, informing him that the data has been saved successfully. For any exception encountered along the way, an error message will be shown.

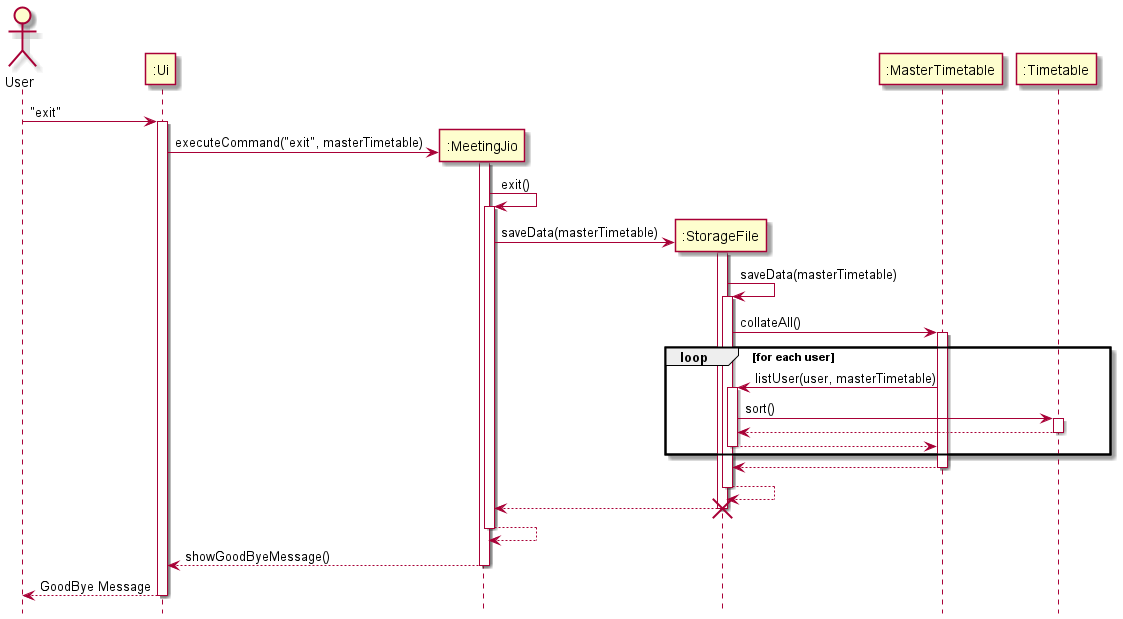

The following sequence diagram shows how the save operation works:

3.8 Loading Data Feature

The save mechanism is facilitated by StorageFile. It reads the data specified in the local machine and stores all the records back into the MasterTimetable and Timetable list.

Given below is the steps on how the load operation works.

1. When the user starts the application. The StorageFile.LoadData will be initialized.
2. It will check for the existence of the data file. If the file is not found, do nothing. Else it will open the file and extract the record line by line.
3. If a record is a lesson type, then it will call ParserLocalData.prepareLoadLesson method. Else if the record is a meeting type, then it will add the record into the meetingList.
4. If there is no record left, the program will check if the previous record contain a meeting. If yes, it will call for ParserLocalData.prepareLoadMeeting method to add all the meetings into the list.

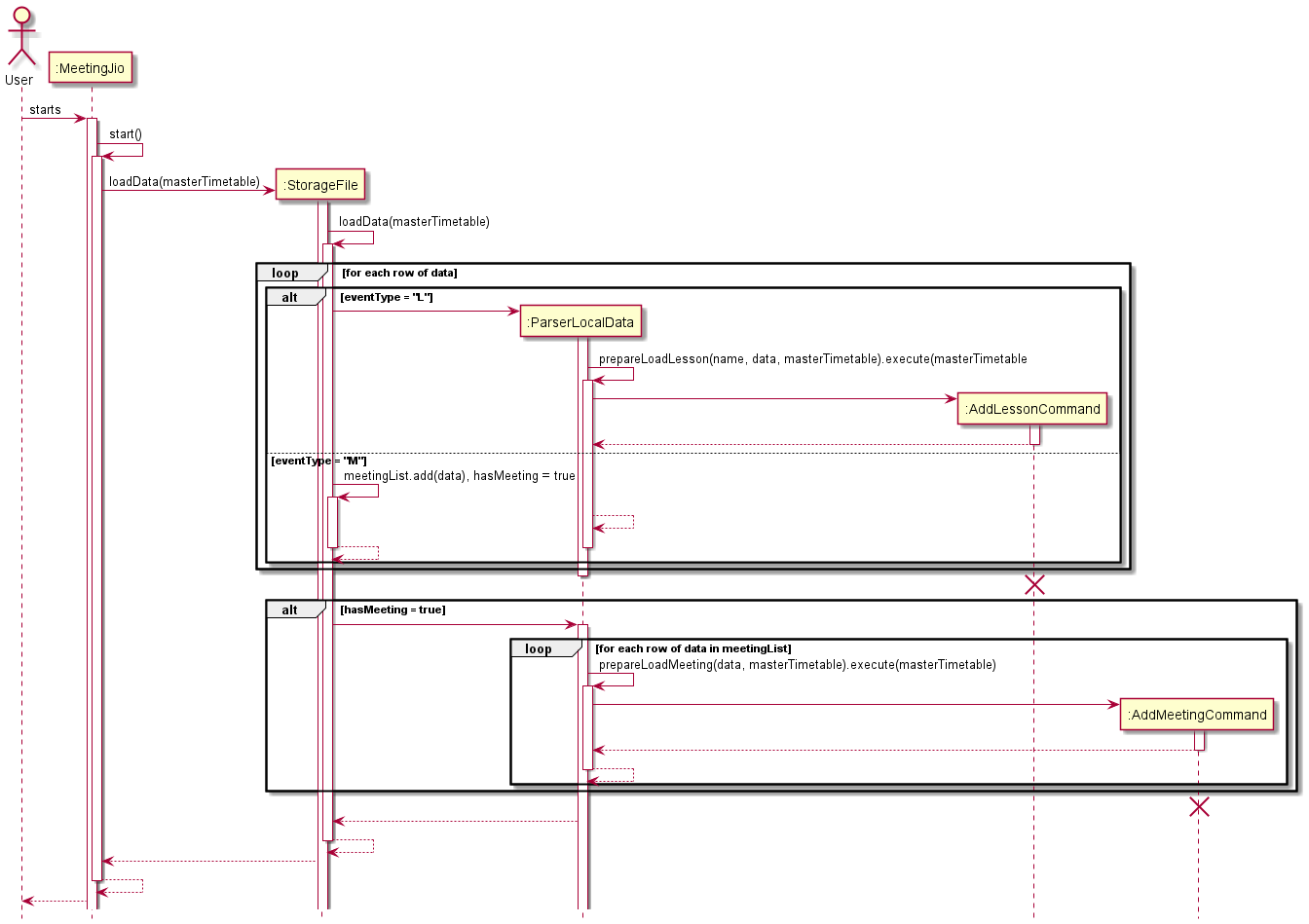

The following sequence diagram shows how the load operation works:

Appendix A: Product scope

Target user profile

NUS Students who wish to meet as a group (be it for project meetings or to eat together)

Value proposition

1. Allow a group of students to quickly identify a common time slot such that all of them are free to meet up

2. If the group of students has a certain constraint regarding the minimum number of hours they want to meet for, the programme can also accommodate to this requirement

Appendix B: User Stories

Version	As a …	I want to …	So that I can …
v1.0	new user	see usage instructions	refer to them when I forget the command format
v1.0	user	add a lesson	view my schedule easily
v1.0	user	delete a lesson	modify my schedule accordingly
v1.0	user	view all the lessons I have in my timetable	plan my activities accordingly
v1.0	user	add the location parameter to my lesson	plan my route in advance
v1.0	user	add a start time and end time to my lessons	know what time a lesson starts and ends
v1.0	user	clear all the lessons saved in the timetable	reset my timetable without the need to delete one by one
v2.0	user	add a new user	add my friends’ timetables
v2.0	user	see some common free slots	arrange a meeting
v2.0	user	add a meeting	block the time slot in everyone’s timetables
v2.0	user	view all the events filtered by type	obtain a quick summary of my week
v2.0	user	edit a lesson	update the lesson without replace it with a new one
v2.0	user	remove a user	remove the user’s timetable and his or her events
v2.0	user	save the modified timetable to the local machine	reuse it next time

Appendix C: Non-Functional Requirements

1. MeetingJio should work on Windows, macOSX and Linux as long as it has Java 11 or above installed.
2. As long as the user can type commands in the CLI quickly and properly, tasks are likely to be accomplished faster than using GUI.

Appendix D: Instructions for manual testing

Start up

• Download the latest MeetingJio.jar
• Ensure Java 11 is installed and configured on your device
• Open a command prompt or terminal and run the command java -jar MeetingJio.jar

Running Commands

• Input help to get an overview of the list of accepted commands
• You can also refer to our User Guide to understand how to use each command

Shut Down

• Input exit to quit the programme
